PEEK 암나사 벌크헤드 유니온
Runze Fluid PEEK Female Thread Bulkhead Union
패널 관통 M10×1 · PPS 너트 + PP 회전방지 클립 · 컬러 구분 · 70규격

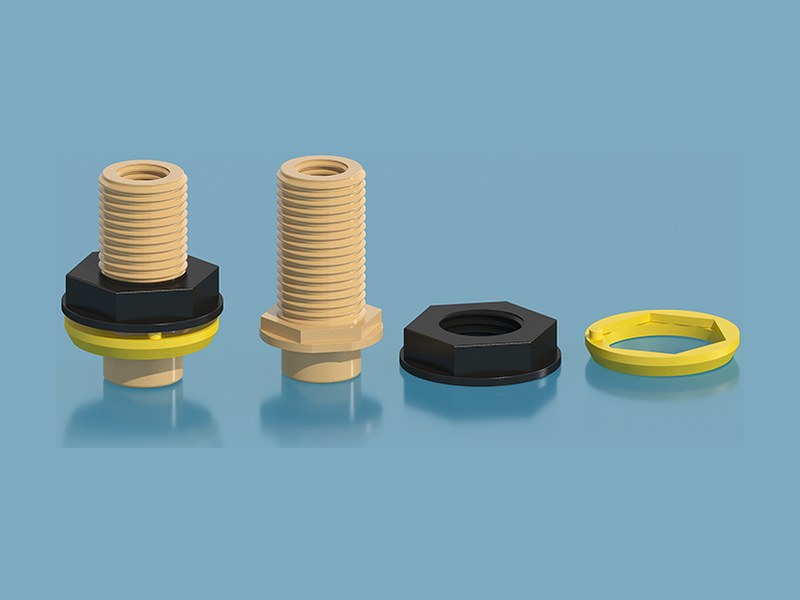

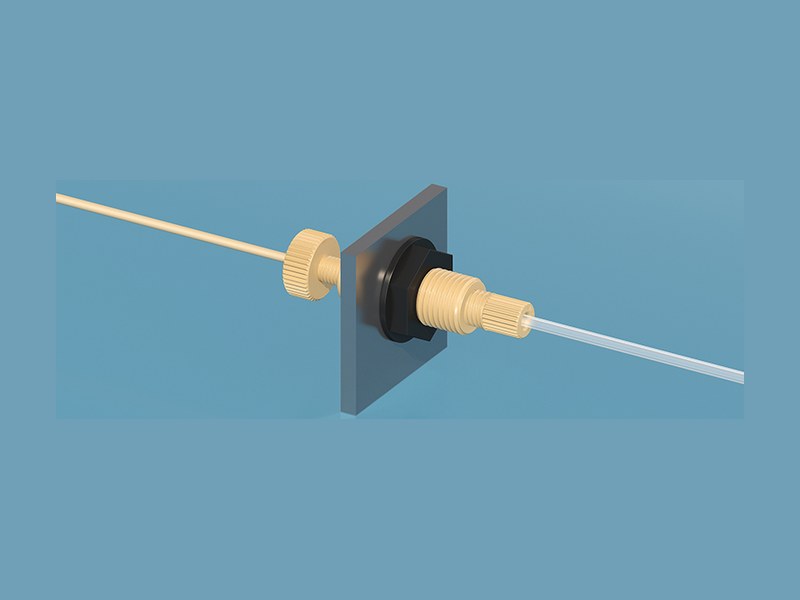

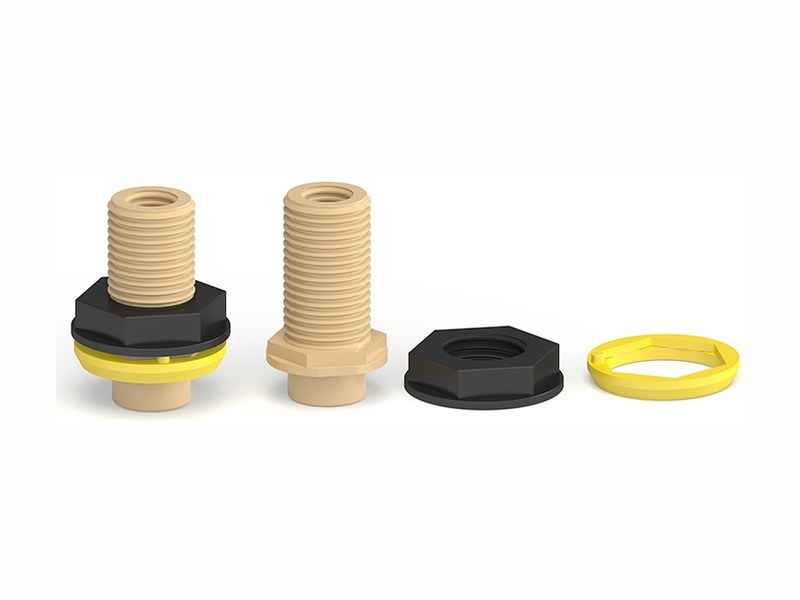

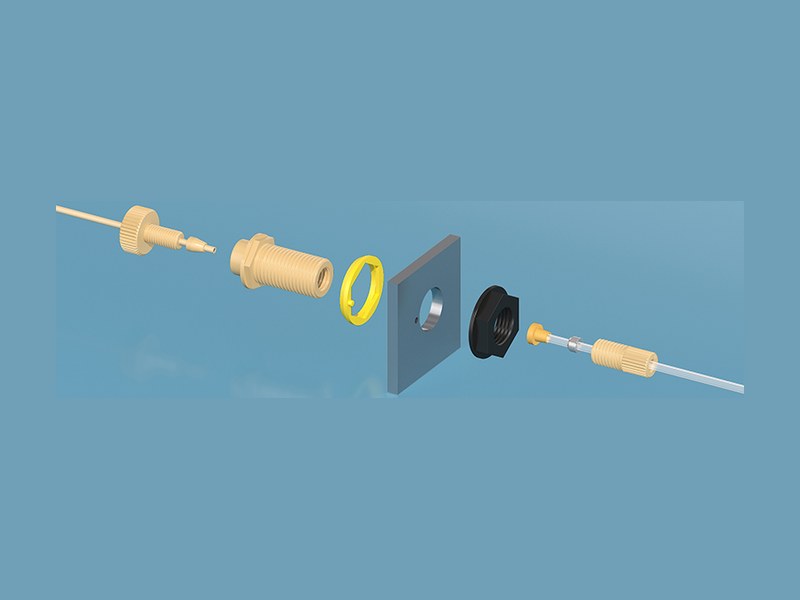

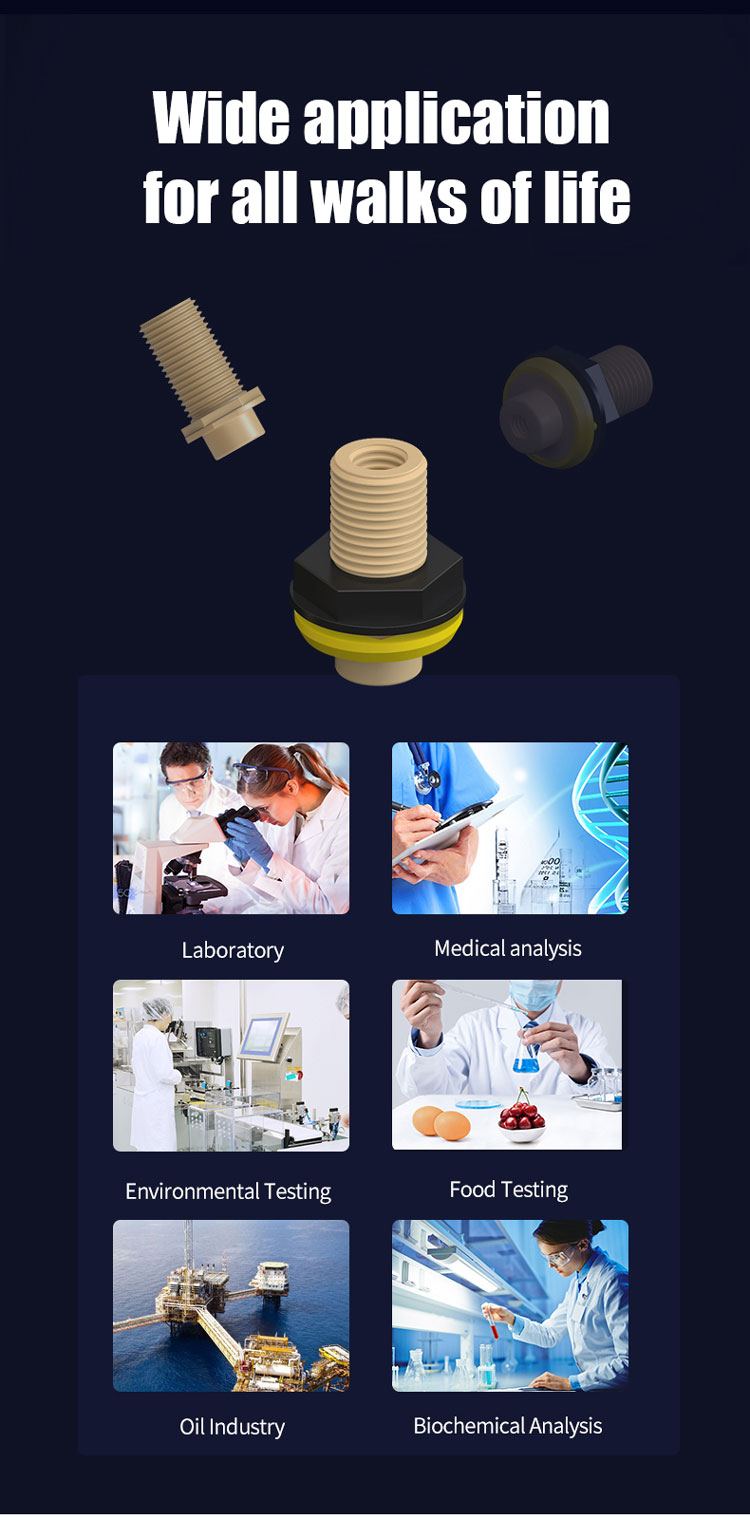

PEEK 암나사 벌크헤드 유니온은 장비 하우징을 관통해 내부 배관을 외부로 잇는 피팅으로, 컬러 회전방지 클립으로 유로를 색으로 구분합니다.
PEEK 암나사 벌크헤드 유니온은 장비 하우징을 관통해 내부 배관을 외부로 잇는 피팅으로, 컬러 회전방지 클립으로 유로를 색으로 구분합니다.

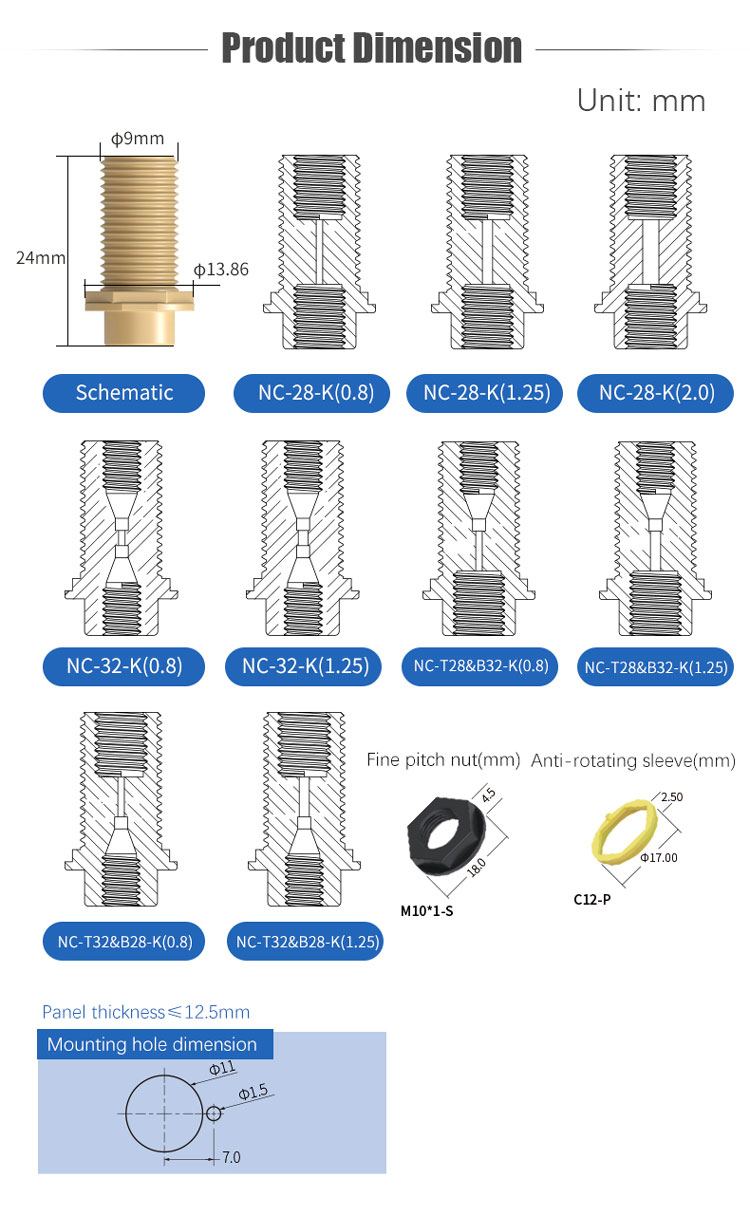

| 나사 규격 (Thread) | 1/4-28 UNF 평저 (암) · M10×1 (수, 관통) |
|---|---|
| 구성 (Assembly) | PEEK 본체 + PPS 너트 + PP 회전방지 클립 3피스 |

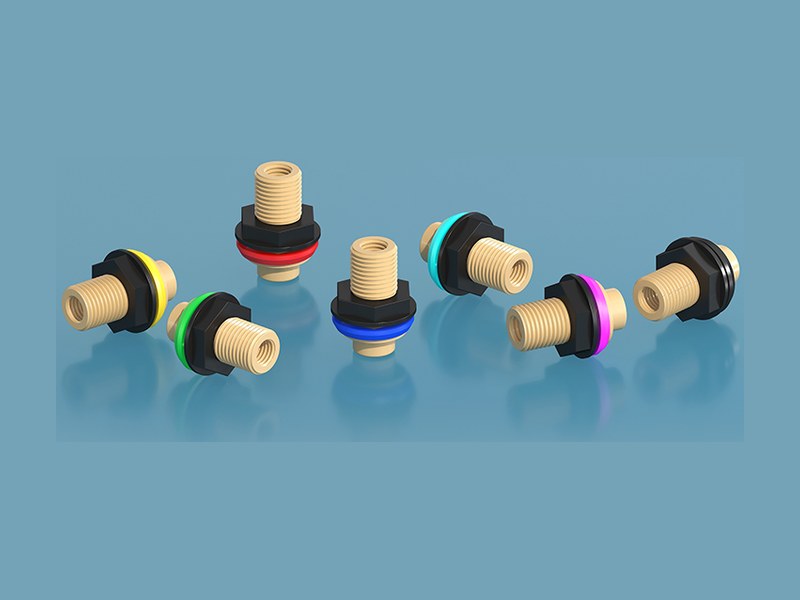

| 재질 (Material) | PEEK 내추럴 · PPS 블랙 · PP 컬러 클립 |
| 사용 온도 (Temperature) | -100℃ ~ +250℃ 장기 사용 |
| 유로 직경 (Flow path diameter) | 0.8 / 1.25 mm |
| 습부 체적 (Wetted liquid volume) | 4 mm³ (0.8 mm) · 9.82 mm³ (1.25 mm) |
| 설치 (Installation) | 패널 사전 천공 필요 |
| SKU | 모델 번호 (Model No.) | 나사 (Thread) | Flow Passage Diameter | Wetted liquid volum | 재질 (Material) |
|---|---|---|---|---|---|
| NC-28-K | |||||
| 1011070017 | NC-28-K(1.25) * M10*1-S * C12-P red | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP red |
| 1011070018 | NC-28-K(1.25) * M10*1-S * C12-P deep dark | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP deep dark |
| 1011070019 | NC-28-K(1.25) * M10*1-S * C12-P lemon yellow | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070020 | NC-28-K(1.25) * M10*1-S * C12-P grass green | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP grass green |
| 1011070021 | NC-28-K(1.25) * M10*1-S * C12-P beige blue | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP beige blue |
| 1011070022 | NC-28-K(1.25) * M10*1-S * C12-P dark blue | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP dark blue |
| 1011070023 | NC-28-K(1.25) * M10*1-S * C12-P deep purple | 1/4-28UNF flflat bottom | 1.25mm | 9.82MM3 | PEEK natural*PPS black*PP deep purple |
| 1011070024 | NC-28-K(2.0) * M10*1-S * C12-P red | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP red |
| 1011070025 | NC-28-K(2.0) * M10*1-S * C12-P deep dark | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070026 | NC-28-K(2.0) * M10*1-S * C12-P lemon yellow | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070027 | NC-28-K(2.0) * M10*1-S * C12-P grass green | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP grass green |
| 1011070028 | NC-28-K(2.0) * M10*1-S * C12-P beige blue | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070029 | NC-28-K(2.0) * M10*1-S * C12-P dark blue | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070030 | NC-28-K(2.0) * M10*1-S * C12-P deep purple | 1/4-28UNF flflat bottom | 2.0mm | 25.13mm3 | PEEK natural*PPS black*PP deep purple |
| NC-32-K | |||||
| 1011070031 | NC-32-K(0.8) * M10*1-S * C12-P red | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP red |
| 1011070032 | NC-32-K(0.8) * M10*1-S * C12-P deep dark | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070033 | NC-32-K(0.8) * M10*1-S * C12-P lemon yellow | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070034 | NC-32-K(0.8) * M10*1-S * C12-P grass green | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP grass green |
| 1011070035 | NC-32-K(0.8) * M10*1-S * C12-P beige blue | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070036 | NC-32-K(0.8) * M10*1-S * C12-P dark blue | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070037 | NC-32-K(0.8) * M10*1-S * C12-P deep purple | 10-32UNF conical | 0.8mm | 6.97mm3 | PEEK natural*PPS black*PP deep purple |
| 1011070038 | NC-32-K(1.25) * M10*1-S * C12-P red | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP red |
| 1011070039 | NC-32-K(1.25) * M10*1-S * C12-P deep dark | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070040 | NC-32-K(1.25) * M10*1-S * C12-P lemon yellow | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070041 | NC-32-K(1.25) * M10*1-S * C12-P grass green | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP grass green |
| 1011070042 | NC-32-K(1.25) * M10*1-S * C12-P beige blue | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070043 | NC-32-K(1.25) * M10*1-S * C12-P dark blue | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070044 | NC-32-K(1.25) * M10*1-S * C12-P deep purple | 10-32UNF conical | 1.25mm | 8.33mm3 | PEEK natural*PPS black*PP deep purple |
| NC-T28&B32-K | |||||
| 1011070045 | NC-T28&B32-K(0.8) * M10*1-S * C12-P red | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP red |
| 1011070046 | NC-T28&B32-K(0.8) * M10*1-S * C12-P deep dark | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070047 | NC-T28&B32-K(0.8) * M10*1-S * C12-P lemon yellow | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070048 | NC-T28&B32-K(0.8) * M10*1-S * C12-P grass green | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP grass green |
| 1011070049 | NC-T28&B32-K(0.8) * M10*1-S * C12-P beige blue | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070050 | NC-T28&B32-K(0.8) * M10*1-S * C12-P dark blue | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070051 | NC-T28&B32-K(0.8) * M10*1-S * C12-P deep purple | 1/4-28UNF flflat bottom & 10-32UNF conical | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP deep purple |
| 1011070052 | NC-T28&B32-K(1.25) * M10*1-S * C12-P red | 1/4-28UNF flflat bottom & 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP red |
| 1011070053 | NC-T28&B32-K(1.25) * M10*1-S * C12-P deep dark | 1/4-28UNF flflat bottom & 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070054 | NC-T28&B32-K(1.25) * M10*1-S * C12-P lemon yellow | 1/4-28UNF flflat bottom & 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070055 | NC-T28&B32-K(1.25) * M10*1-S * C12-P grass green | 1/4-28UNF flflat bottom & 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP grass green |
| 1011070056 | NC-T28&B32-K(1.25) * M10*1-S * C12-P beige blue | 1/4-28UNF flflat bottom& 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070057 | NC-T28&B32-K(1.25) * M10*1-S * C12-P dark blue | 1/4-28UNF flflat bottom& 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070058 | NC-T28&B32-K(1.25) * M10*1-S * C12-P deep purple | 1/4-28UNF flflat bottom & 10-32UNF conical | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP deep purple |
| NC-T28&B32-K | |||||
| 1011070059 | NC-T32&B28-K(0.8) * M10*1-S * C12-P red | 10-32UNF conical& 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP red |
| 1011070060 | NC-T32&B28-K(0.8) * M10*1-S * C12-P deep dark | 10-32UNF conical& 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070061 | NC-T32&B28-K(0.8) * M10*1-S * C12-P lemon yellow | 10-32UNF conical & 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070062 | NC-T32&B28-K(0.8) * M10*1-S * C12-P grass green | 10-32UNF conical & 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP grass green |
| 1011070063 | NC-T32&B28-K(0.8) * M10*1-S * C12-P beige blue | 10-32UNF conical & 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070064 | NC-T32&B28-K(0.8) * M10*1-S * C12-P dark blue | 10-32UNF conical & 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070065 | NC-T32&B28-K(0.8) * M10*1-S * C12-P deep purple | 10-32UNF conical & 1/4-28UNF flflat bottom | 0.8mm | 5.5mm3 | PEEK natural*PPS black*PP deep purple |
| 1011070066 | NC-T32&B28-K(1.25) * M10*1-S * C12-P red | 10-32UNF conical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP red |
| 1011070067 | NC-T32&B28-K(1.25) * M10*1-S * C12-P deep dark | 10-32UNF conical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070068 | NC-T32&B28-K(1.25) * M10*1-S * C12-P lemon yellow | 10-32UNF conical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070069 | NC-T32&B28-K(1.25) * M10*1-S * C12-P grass green | 10-32UNF conical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP grass green |
| 1011070070 | NC-T32&B28-K(1.25) * M10*1-S * C12-P beige blue | 10-32UNF conical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070071 | NC-T32&B28-K(1.25) * M10*1-S * C12-P dark blue | 10-32UNF conical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070072 | NC-T32&B28-K(1.25) * M10*1-S * C12-P deep purple | 10-32UNFconical & 1/4-28UNF flflat bottom | 1.25mm | 9.08mm3 | PEEK natural*PPS black*PP deep purple |
| SKU | 모델 (Model) | 나사 (Thread) | Flow path Diameter | Wetted liquid volume | 재질 (Material) |
|---|---|---|---|---|---|
| NC-28-K | |||||
| 1011070010 | NC-28-K(0.8) * M10*1-S * C12-P red | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP red |
| 1011070011 | NC-28-K(0.8) * M10*1-S * C12-P deep dark | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP deep dark |
| 1011070012 | NC-28-K(0.8) * M10*1-S * C12-P lemon yellow | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP lemon yellow |
| 1011070013 | NC-28-K(0.8) * M10*1-S * C12-P grass green | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP grass yreen |
| 1011070014 | NC-28-K(0.8) * M10*1-S * C12-P beige blue | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP beige blue |
| 1011070015 | NC-28-K(0.8) * M10*1-S * C12-P dark blue | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP dark blue |
| 1011070016 | NC-28-K(0.8) * M10*1-S * C12-P deep purple | 1/4-28UNF flflat bottom | 0.8mm | 4mm3 | PEEK natural*PPS black*PP deep purple |
